2D CNC Wire Bending

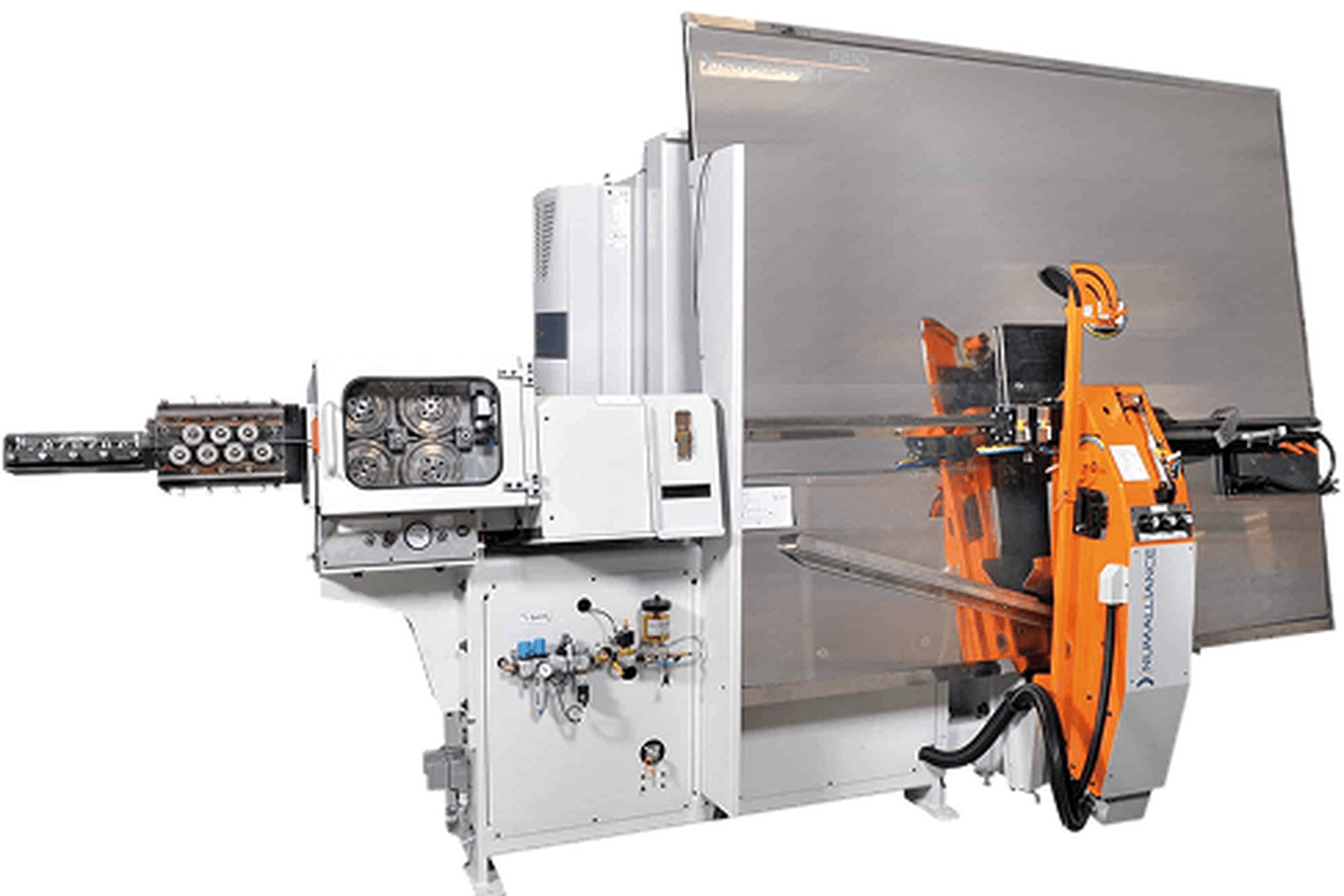

F2D
Precision 2D forming for frames up to 800mm
The F2D is purpose-built for 2D wire forms and welded frames where in-plane geometry is the primary requirement. The support table maintains wire position during large frame production, while optional integrated welding allows closed-loop frames to exit the machine ready for finishing. Pick-and-place ejection keeps completed frames organized for downstream operations.
.12–.47″
Wire Diameter
3–12 mm
Metric
Specifications
- Wire Capacity
- .12–.47″ / 3–12 mm at 600 N/mm²
- Bending Type
- 2D from coil
- Max Frame Size
- 800 × 800 mm / 31.5 × 31.5″
- Welding
- Optional integrated
- Ejection
- Optional pick-and-place
- Batch Size
- Small to medium production
Key Features
- 2D bending from coil
- Frames up to 800 × 800 mm
- Support table for large frame stability
- Optional integrated welding station
- Weld parameters saved with part program
- Optional pick-and-place ejection
- Small to medium batch optimization
- Simulation software for setup
Applications
The F2D is engineered for demanding production environments across multiple industries:
- Rectangular wire frames
- Display rack outlines
- Furniture seat frames
- Industrial guards and covers
- Welded basket tops
- HVAC register frames
Videos
Watch the F2D in action. These demonstrations showcase the machine's capabilities in real production environments.
NumAlliance 2D Frame Bending Systems
