3D CNC Wire Bending
Robomac TF
High-performance 3D wire bending with proven reliability

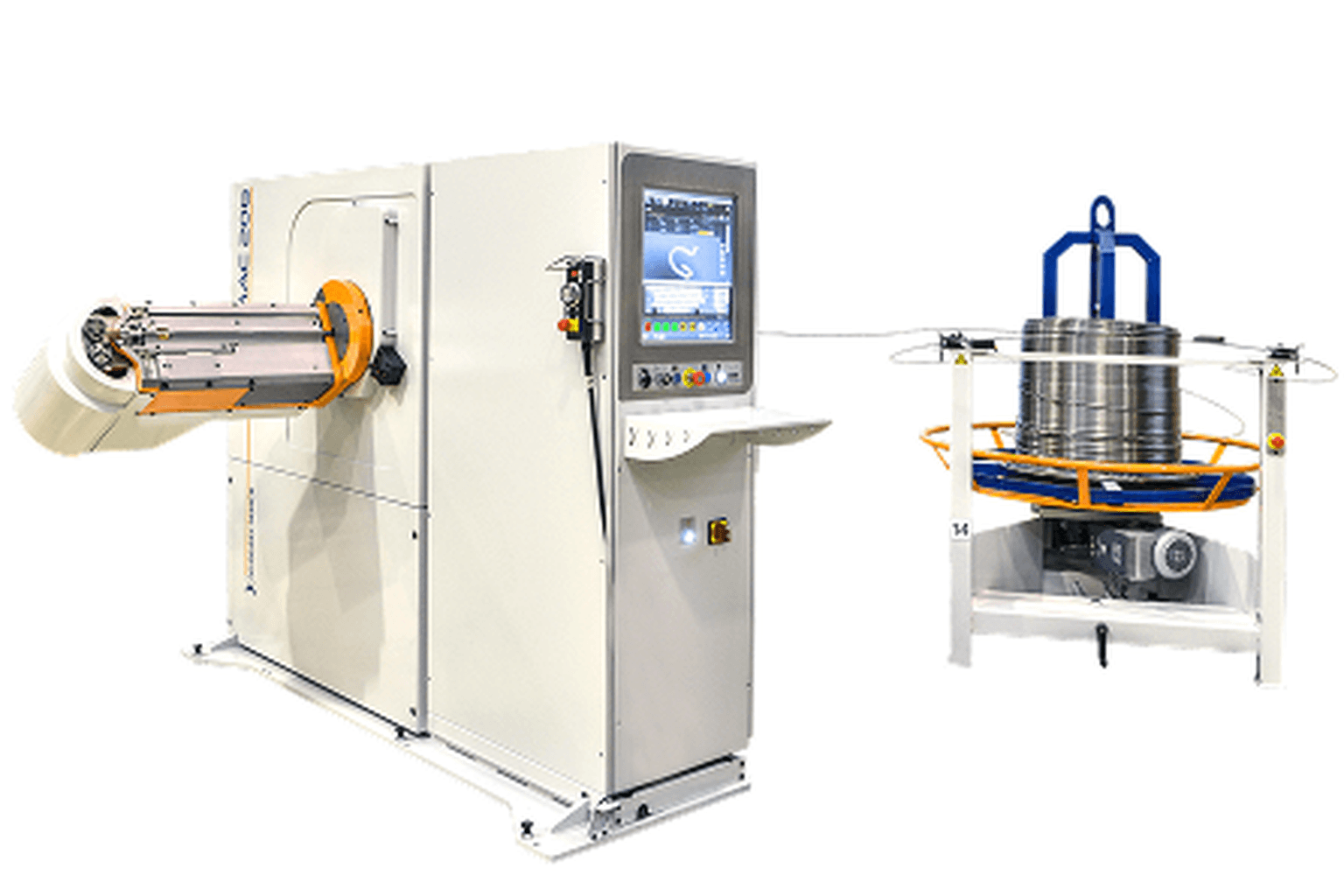

The Robomac TF series represents decades of industrial wire forming expertise in a compact, robust package. With configurations ranging from single to triple bending heads, this CNC platform handles wire diameters from 2mm to 16mm with exceptional repeatability. The bending head moves freely around the wire, enabling complex 3D geometries without material slip or marking.
.08–.625″
Wire Diameter
2–16 mm
Metric
Specifications
- Wire Capacity
- .08–.625″ / 2–16 mm at 600 N/mm²
- Bending Type
- 3D from coil
- Bending Heads
- 1, 2, or 3
- Models
- R106TF, R108TF, R206TF, R208TF, R210TF, R213TF, R214TF, R216TF, R310TF
- Control
- CNC with 19″ touchscreen
- Materials
- Mild steel, stainless, aluminum, copper
Key Features
- 3D bending from coil
- Compact and robust frame
- 1 to 3 bending heads available
- Bending head moves freely around wire
- Simple tool design with easy configuration
- Dedicated safety fence for machine and decoiler
- 19″ touchscreen programming interface
- Simulation software for part setup
Applications
The Robomac TF is engineered for demanding production environments across multiple industries:
- Automotive seat frames and headrests
- Furniture wire components
- Industrial hooks and hangers
- Agricultural equipment clips
- HVAC mounting brackets
- Medical device frames
Videos
Watch the Robomac TF in action. These demonstrations showcase the machine's capabilities in real production environments.
NumAlliance Industry 4.0 Automated Wire Forming Cell
Robomac TF Wire Bending Machine Demo
