3D CNC Wire Bending
Robomac 2 Heads
Dual-head forming for long and symmetrical parts

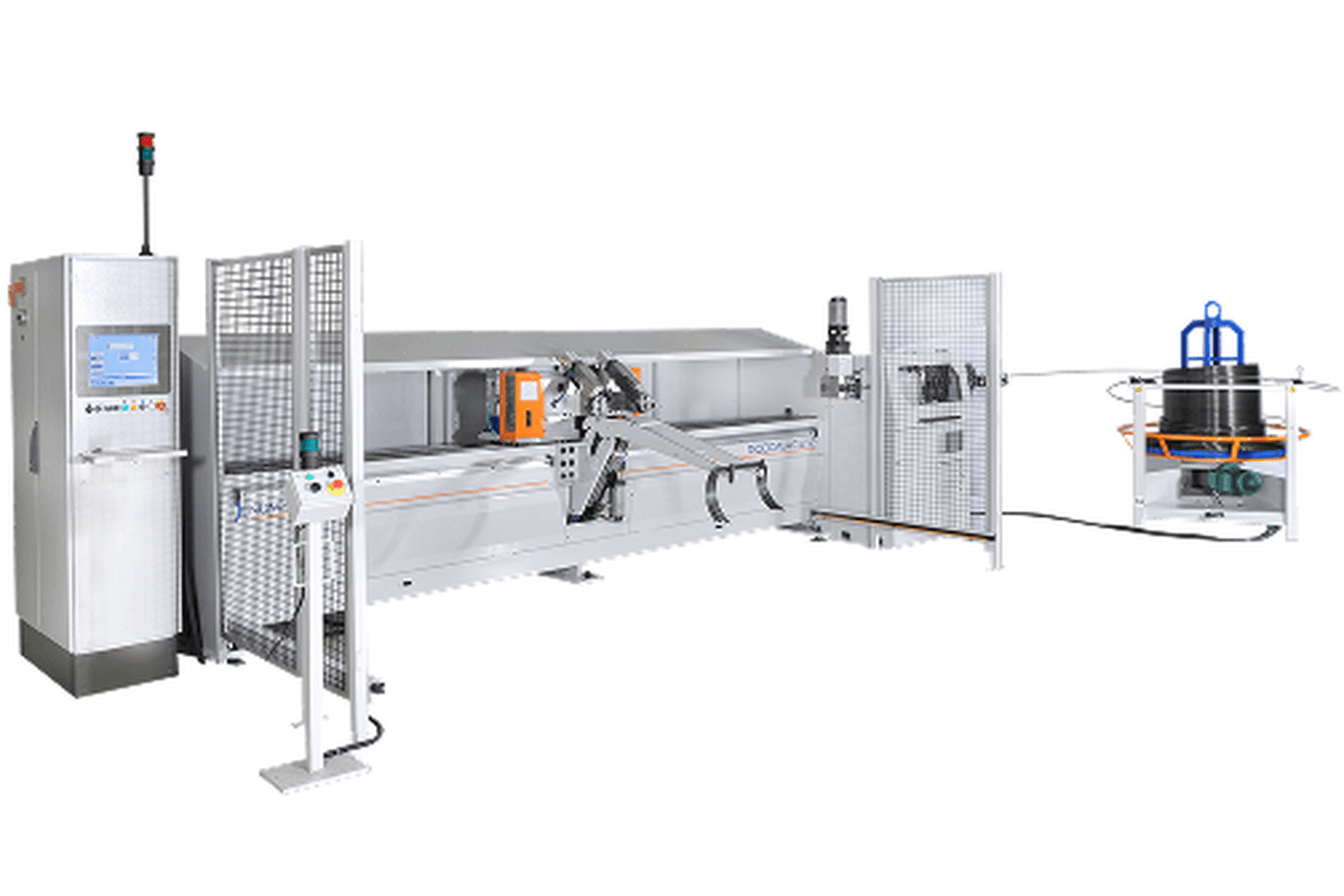

The Robomac 2 Heads machine is engineered specifically for long-length and symmetrical wire forms. The retractable central orientation clamp achieves extremely short distances between the final two bends—down to 75mm—enabling geometries that single-head machines cannot efficiently produce. Both heads can operate independently, opening possibilities for asymmetrical parts and optimized cycle times.
.065–.47″
Wire Diameter
1.8–12 mm
Metric
Specifications
- Wire Capacity
- .065–.47″ / 1.8–12 mm at 600 N/mm²
- Bending Type
- 3D from coil or precut
- Bending Heads
- 2 (optional independent)
- Min Central Distance
- 3″ / 75 mm
- Models
- R2104TF, R2105TF, R2106TF, R2108TF, R2110TF, R2112TF
- Feed Options
- Coil or precut lengths
Key Features
- Double bending head configuration
- Retractable central clamp for close bends
- Minimum 3″ (75mm) between central bends
- 3-position auxiliary clamp on heads
- Looping capability at both ends
- Optional independent head operation
- Modular and expandable design
- Coil or precut length feeding
Applications
The Robomac 2 Heads is engineered for demanding production environments across multiple industries:
- Long symmetrical frames
- Automotive headrest wires
- Shopping cart handles
- Furniture back supports
- Industrial safety guards
- Display rack structures
Videos
Watch the Robomac 2 Heads in action. These demonstrations showcase the machine's capabilities in real production environments.
NumAlliance Dual-Head Wire Bending Cell
