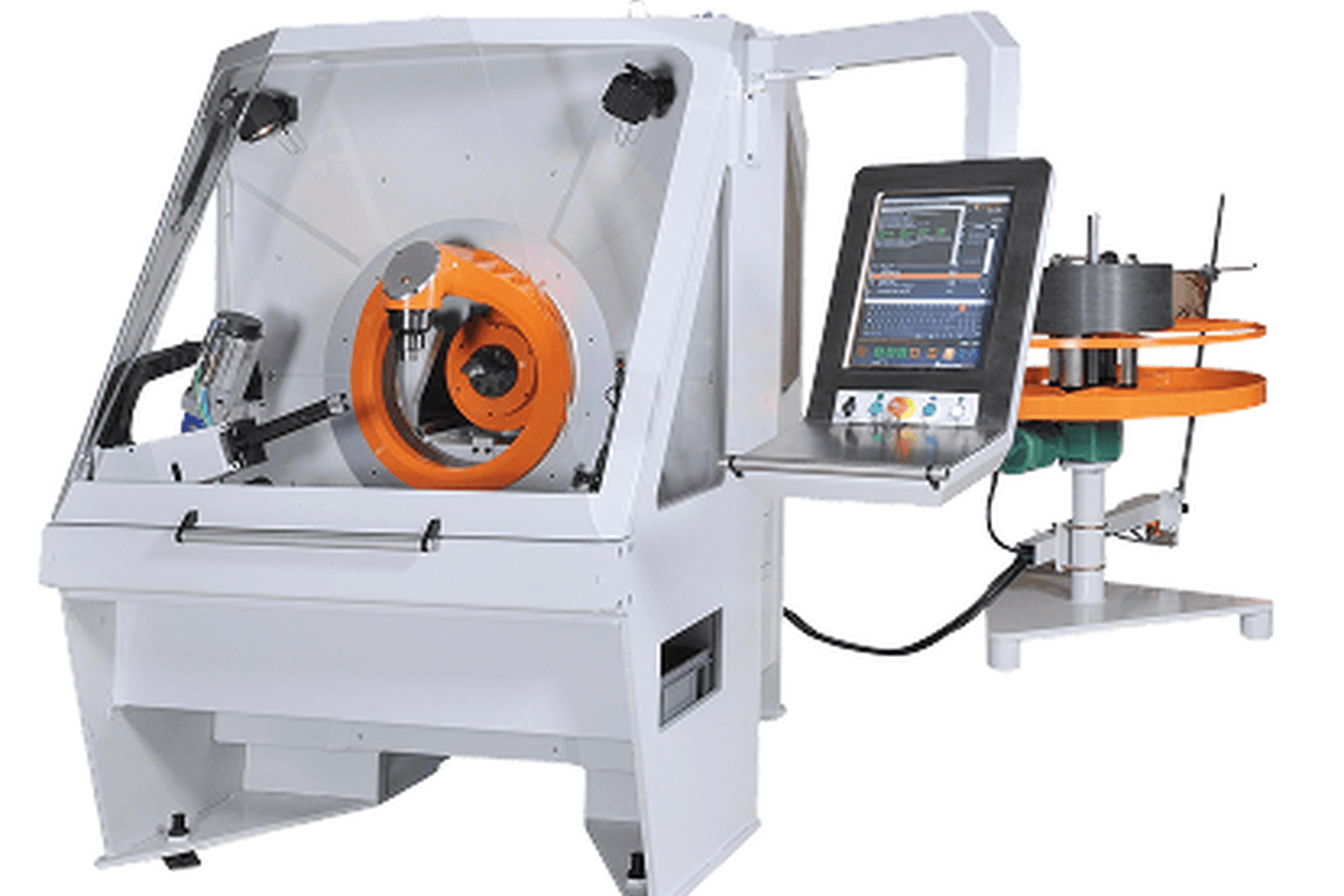

3D CNC Wire Bending
FRX
Compact flexibility from spring coils to complex forms
The FRX bridges traditional spring coiling and modern 3D wire forming in a compact, flexible package. The robotized bending arm rotates infinitely around the wire without inducing torsion stress, enabling both tight spring coils and open 3D geometries from the same machine. Optional laser coil detection adds process control for spring-wound sections.
.03–.25″
Wire Diameter
0.8–6 mm
Metric
Specifications
- Wire Capacity (High Tensile)
- .03–.16″ / 0.8–4 mm at 1800 N/mm²
- Wire Capacity (Standard)
- .03–.25″ / 0.8–6 mm at 600 N/mm²
- Bending Type
- 3D from coil
- Special Feature
- Infinite rotation bending arm
- Models
- FRX04, FRX06
- Options
- Laser coil detection
Key Features
- Robotized bending arm with infinite rotation
- No torsion stress on wire during forming
- Multi-face tooling for complex parts
- Quick changeover for small batches
- Optional laser coil detection
- Spring coiling capability
- 3D forming from coil
- Tool editor for complex part programming
Applications
The FRX is engineered for demanding production environments across multiple industries:
- Compression and extension springs
- Wire forms with integrated springs
- Small complex brackets
- Electronic component leads
- Medical device springs
- Precision instrument clips
Videos
Watch the FRX in action. These demonstrations showcase the machine's capabilities in real production environments.
