3D CNC Wire Bending

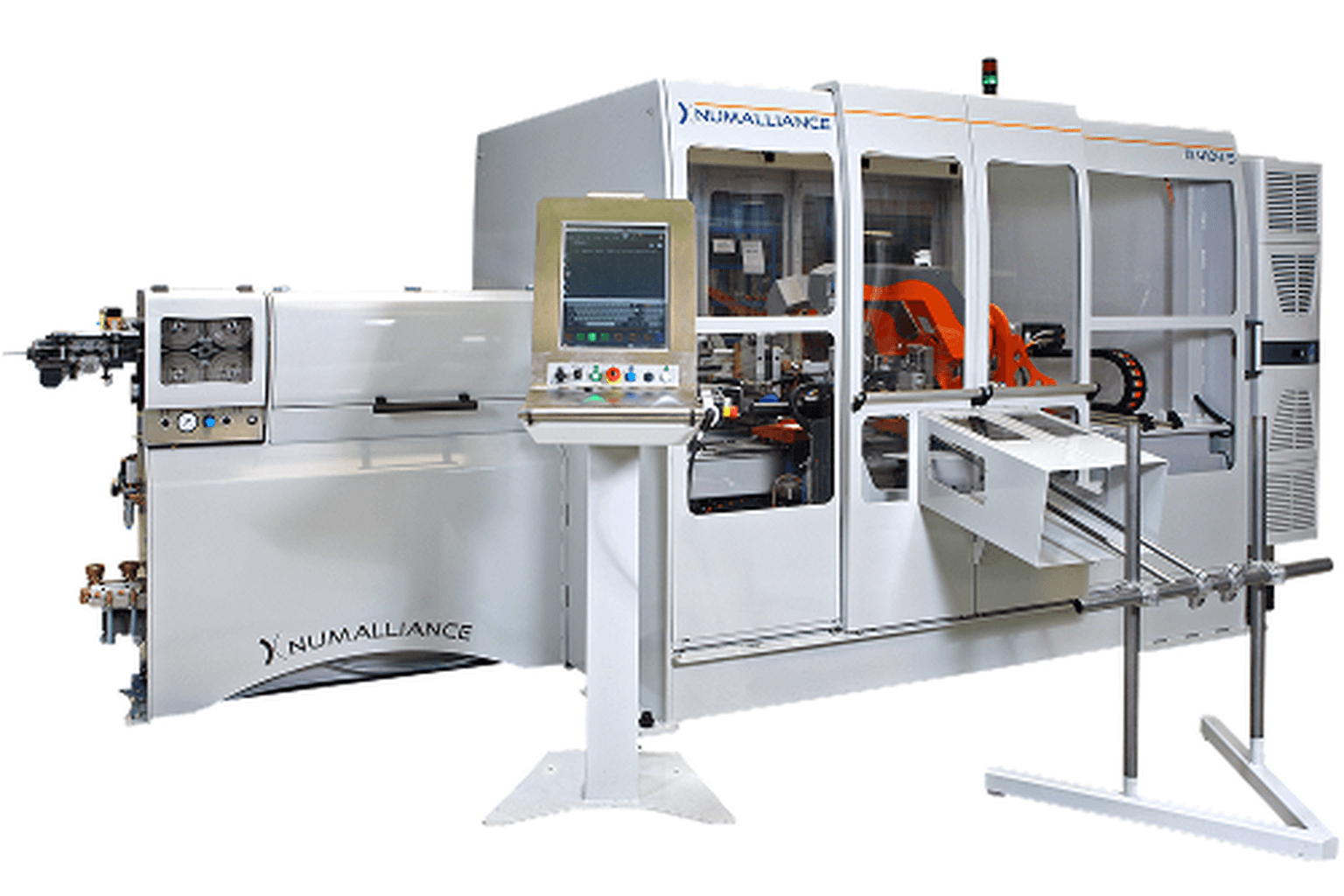

Robomac R4xx
Four simultaneous bends for maximum throughput
The Robomac R4xx pushes wire forming cycle times to their limit with parallel processing architecture. Two benches work simultaneously while four bending heads execute folds in concert, making this the production choice for high-volume symmetrical parts. The narrow central clamp maintains the ability to form tight central geometries while the programmable work height adapts to different part profiles.
.07–.16″
Wire Diameter
1.8–4 mm
Metric
Specifications
- Wire Capacity
- .07–.16″ / 1.8–4 mm at 600 N/mm²
- Bending Type
- 3D from coil
- Bending Heads
- 4
- Working Benches
- 2 parallel
- Min Central Distance
- 2″ / 50 mm
- Straightener
- Rotary or biplane
Key Features
- 2 parallel working benches
- 4 simultaneous bending heads
- Narrow central clamp design
- Programmable work height adjustment
- Looping capability at both ends
- Independent head operation option
- Electric stabilization unit available
- Rotary or biplane straightener options
Applications
The Robomac R4xx is engineered for demanding production environments across multiple industries:
- High-volume automotive clips
- Mass-produced retail hooks
- Consumer product wire forms
- Electronic connector clips
- Small symmetrical brackets
- Light-gauge industrial fasteners
Videos
Watch the Robomac R4xx in action. These demonstrations showcase the machine's capabilities in real production environments.
High-Speed Wire Forming Production
